HDPE Fish Cage Stopper & Pin

HDPE Fish Cage Stopper & Pin, PE100 HDPE, steel or PE100, to ISO 4427 PE100, for aquaculture cage systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Fish Farming

Fish Farming

Product Overview

The HDPE Fish Cage Stopper & Pin are the fastener components that lock brackets, tees and pipe sections together on an HDPE floating fish cage. The Stopper clips onto the pipe end to prevent the Pin from slipping out, while the Pin passes through the bracket or tee and the pipe to form a rigid pin-lock connection - no bolts, no nuts and no welding at the cage site.

Two types of Pin are produced: Pin (dowel) for bracket-to-pipe and tee-to-pipe connections, and a standard Pin for general cage frame assembly. The HDPE Stopper is injection-moulded from PE100 and clips onto the pipe end to retain the pin head. A specialized Stopper Welding Machine is available to pre-fuse stoppers onto pipe ends on shore, making on-site fish cage assembly even faster.

Quick Information

Product Name: HDPE Fish Cage Stopper & Pin
Material: PE100 HDPE (stopper), steel or PE100 (pin)
Pin Diameter: 15 mm / 20 mm
Stopper Type: Clip-on / Weld-on
Standard: ISO 4427 PE100
Service Life: Matches cage frame (15+ years)

Specification Table

Pin and Stopper quantities for each fish cage size. Pin (dowel) is the standard fastener for all cage connections. Stopper clips onto pipe end to retain pin head.

Component	Type	Cage Size	Qty per Cage
Pin (dowel)	Standard pin-lock fastener	8 m	61 ea
Pin (dowel)	Standard pin-lock fastener	10 m	67 ea
Pin (dowel)	Standard pin-lock fastener	12 m	76 ea
Pin (dowel)	Standard pin-lock fastener	15 m	88 ea
Pin (dowel)	Standard pin-lock fastener	18-20 m	103-112 ea
Pin (dowel)	Heavy-duty pin (for Reinforced cages)	30-40 m Reinforced	80-95 ea
Stopper	Clip-on stopper for 20 mm pin	8-25 m	60-160 ea
Stopper	Heavy-duty stopper for Reinforced cages	30-40 m Reinforced	192-252 ea
Stopper Welding Machine	Manual welding machine for stopper fusion on pipe ends	All sizes	optional

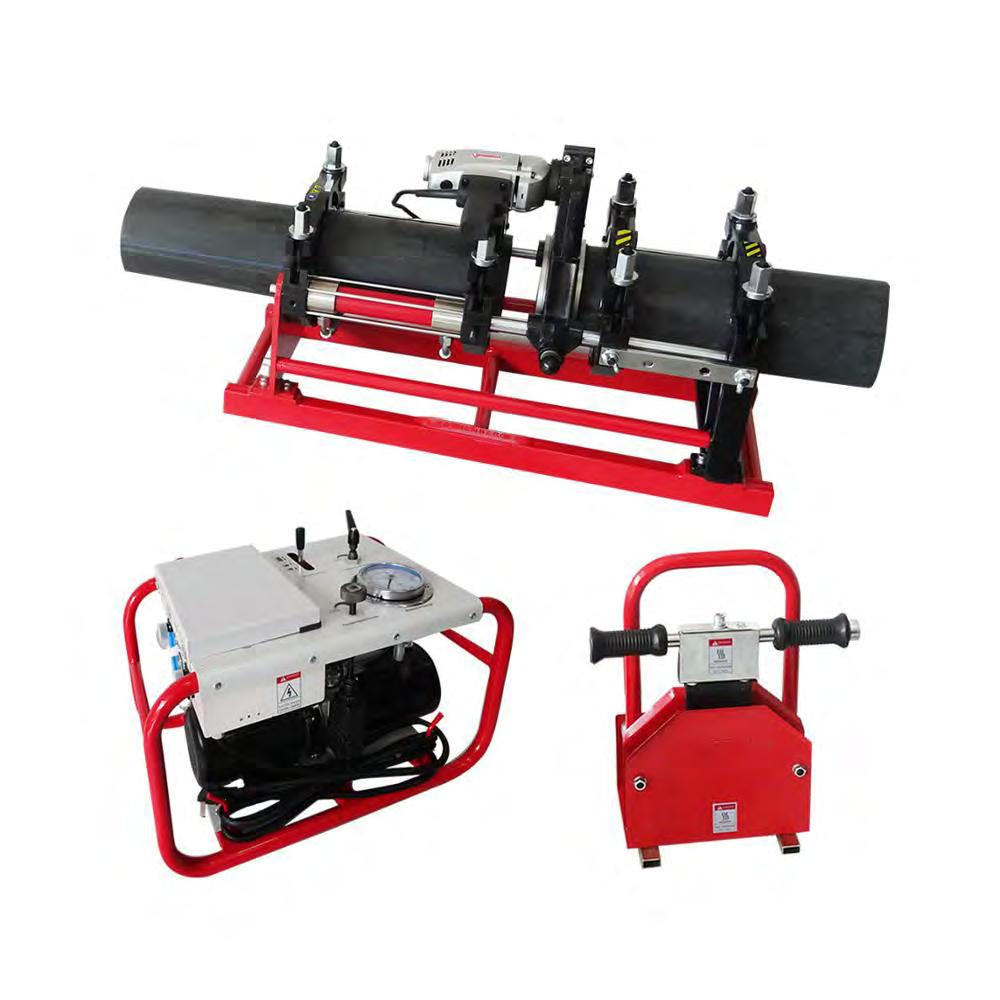

Butt Fusion Machine (63-160 mm)	Manual butt fusion welding machine	All sizes	optional
Butt Fusion Machine (90-250 mm)	HDPE pipe butt welding machine	All sizes	optional
Hydraulic Butt Fusion (250-400 mm)	Hydraulic machine for large diameter pipe	30-40 m Reinforced	optional

Note: Pin and stopper quantities scale with cage diameter and the number of brackets and tees in the frame. Optional welding machines are offered for farms that pre-assemble cage sections on shore.

Key Features

Pin-lock connection system: No nuts, no bolts and no wrenches - the pin passes through pre-drilled holes and the stopper clips on to retain it, so a fish cage frame can be assembled by hand in a fraction of the time a bolted frame needs.
Two pin sizes: 15 mm pins for light-duty tee connections and 20 mm pins for heavy-duty bracket-to-pipe connections cover every joint on the fish cage frame.
Clip-on or weld-on stoppers: Standard clip-on stoppers install on site in seconds, while weld-on stoppers are pre-fused to the pipe end with the Stopper Welding Machine before the cage section goes into the water.
PE100 stoppers: Injection-moulded from the same corrosion-free, UV-stabilized PE100 as the cage frame, so stoppers never rust and never need replacing mid-service.
Heavy-duty versions for offshore cages: Reinforced 30-40 m fish cages use heavy-duty pins and stoppers sized for the higher wave loads of exposed sites.
Complete assembly toolkit: Stopper welding machines and butt fusion machines from 63 mm to 400 mm are available, so a farm can equip its crew for full shore-side cage pre-assembly.

Production

Raw Material

Stoppers are injection-moulded from PE100 HDPE compound with carbon black for UV stability. Pins are machined from steel bar or moulded from PE100 depending on customer specification, so the fastener set can be matched to the corrosion policy of each fish farming site.

Molding Process

Stoppers are injection-moulded for uniform wall thickness and consistent clip retention, while pins are CNC-machined or compression-moulded to precise diameter tolerance. The Stopper Welding Machine uses butt-fusion technology to pre-fuse weld-on stoppers onto pipe ends under controlled temperature and pressure.

Quality Control

Pin diameter tolerance is checked on every batch, stopper clip retention force is tested, and PE100 material certification is provided per shipment - so the fastener set performs identically across every fish cage a farm builds.

Applications

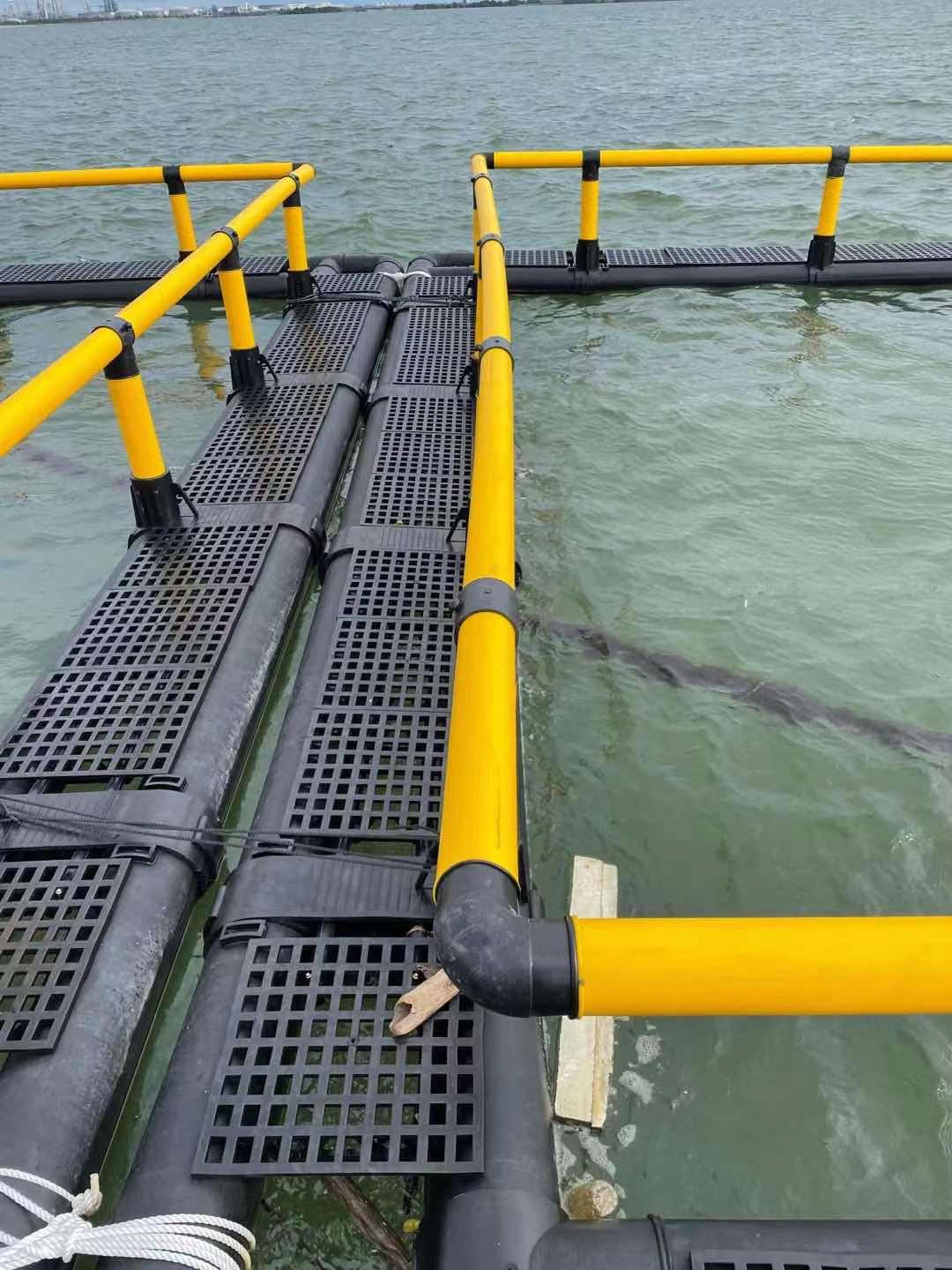

Bracket-to-pipe connections: Pin and stopper lock Single/Double Brackets to the floating pipe ring of the fish cage.
Tee-to-pipe connections: Pin and stopper lock tee ends to standing and handrail pipes.
Frame section assembly: Pin-lock system for joining pipe sections on shore or directly on the water.
Reinforced offshore cages: Heavy-duty pin and stopper sets for 30-40 m Reinforced fish farming cages.
Cage repair and extension: Standard pins and stoppers let an existing fish cage be extended or repaired with matching fasteners years after first installation.
