Product Overview

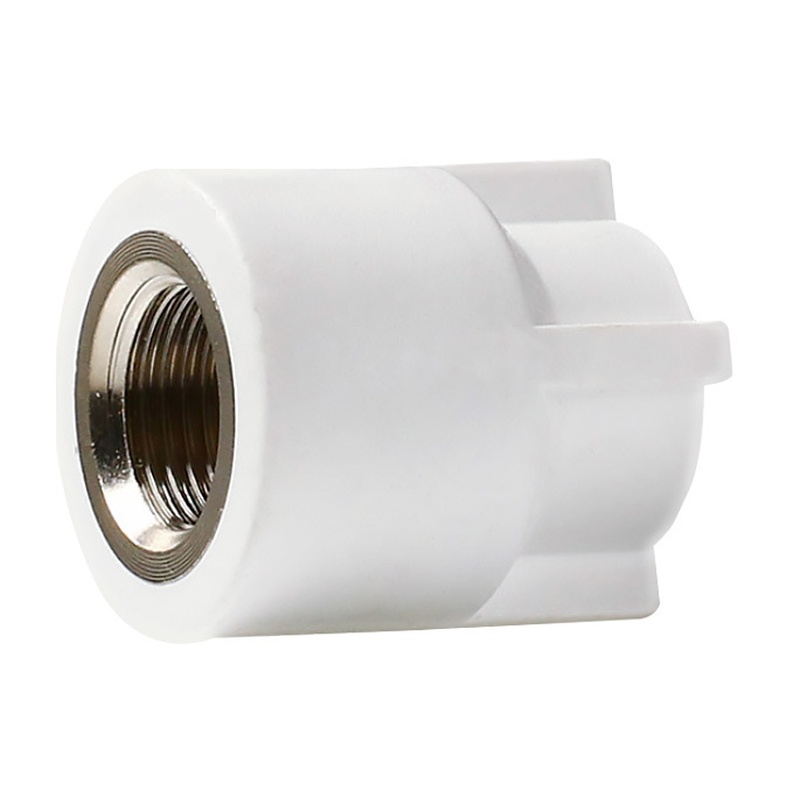

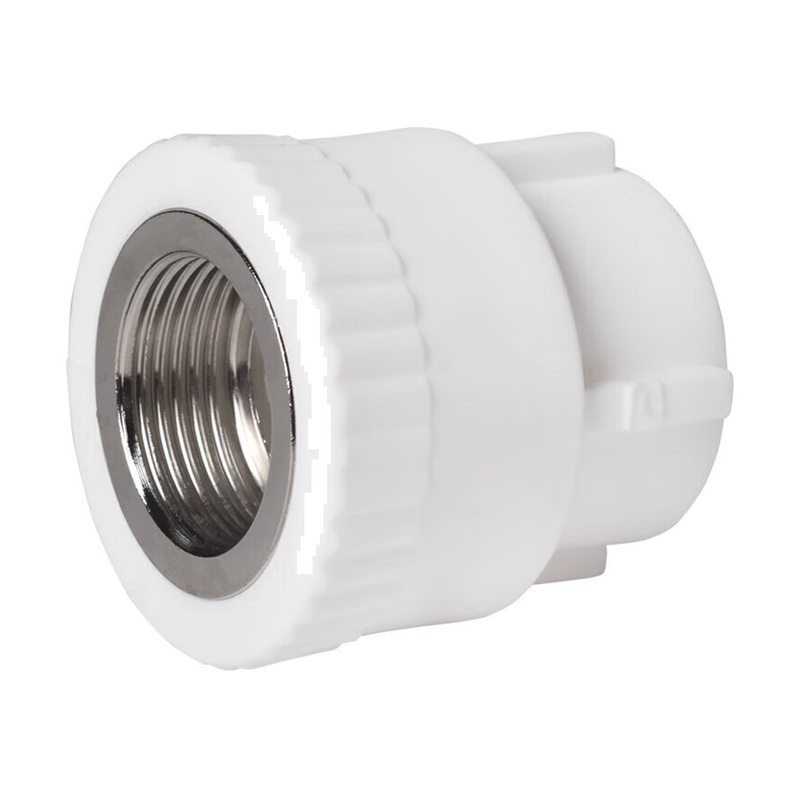

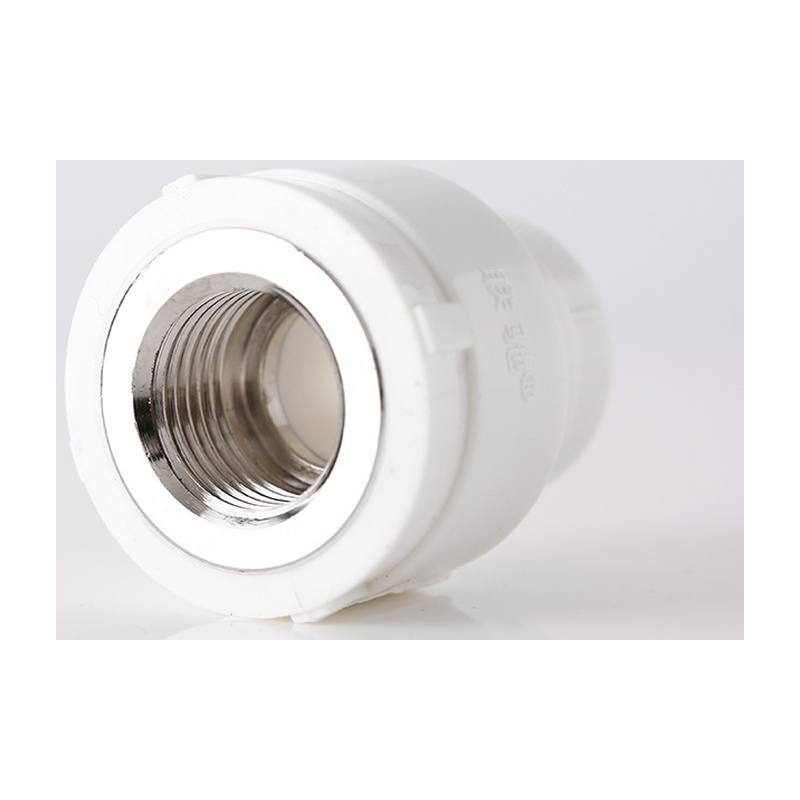

PPR female threaded coupler connects a heat fused PPR line to a male threaded fixture or pipe. One end is a standard PPR socket for heat fusion to PPR pipe, while the other end carries a precision BSP female thread with a pressed brass insert for reliable threaded connection.
Quick Information
- Material: Virgin PP-R body, Brass threaded insert
- Connection: Heat Fusion + Female BSP Thread
- Size Range: S20×1/2F to S63×2F
- Standards: GB/T 18742, ISO 15874
Specification Table
| Size Code | PPR DN (mm) | Thread Size | Connection |
|---|---|---|---|
| S20×1/2F | 20 | 1/2" F BSP | Heat Fusion + Threaded |
| S20×3/4F | 20 | 3/4" F BSP | Heat Fusion + Threaded |
| S25×1/2F | 25 | 1/2" F BSP | Heat Fusion + Threaded |
| S25×3/4F | 25 | 3/4" F BSP | Heat Fusion + Threaded |
| S32×1/2F | 32 | 1/2" F BSP | Heat Fusion + Threaded |
| S32×3/4F | 32 | 3/4" F BSP | Heat Fusion + Threaded |
| S32×1F | 32 | 1" F BSP | Heat Fusion + Threaded |
| S40×1¼F | 40 | 1 1/4" F BSP | Heat Fusion + Threaded |
| S50×1½F | 50 | 1 1/2" F BSP | Heat Fusion + Threaded |
| S63×2F | 63 | 2" F BSP | Heat Fusion + Threaded |
