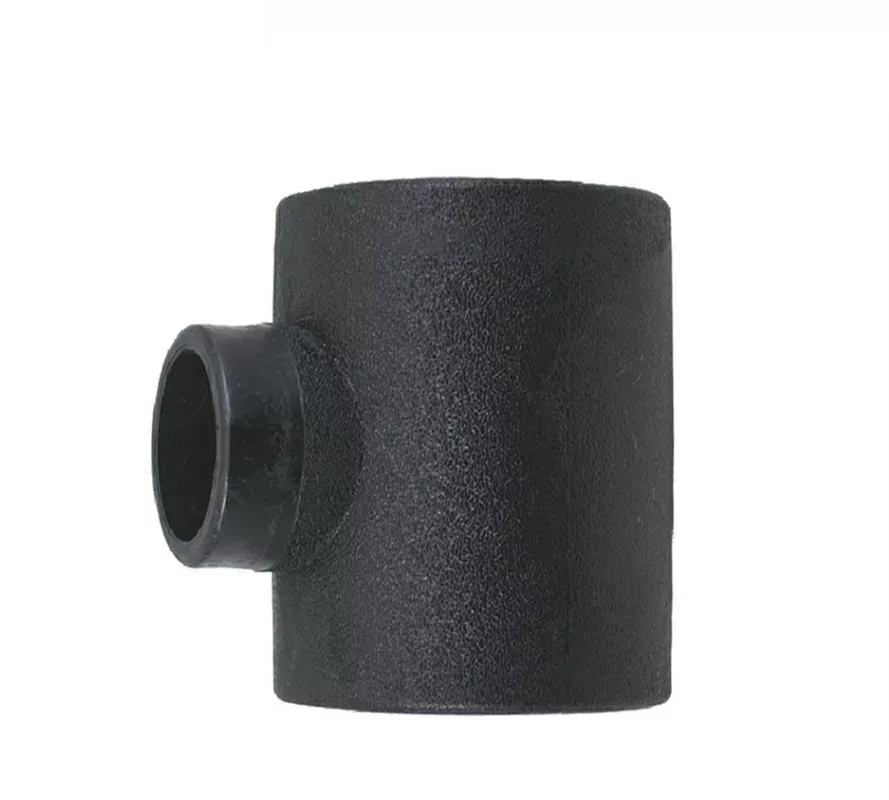

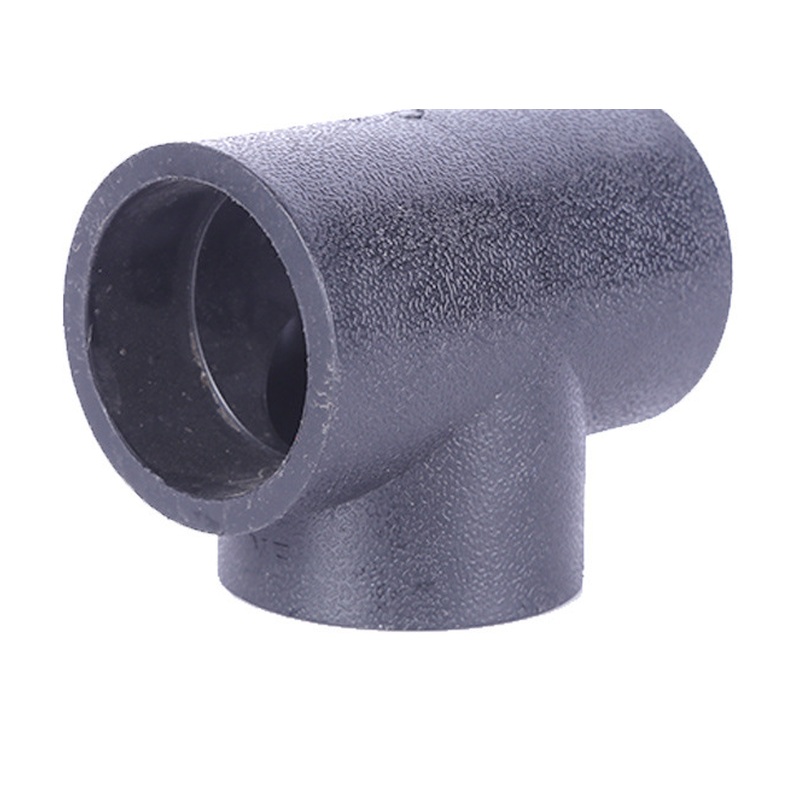

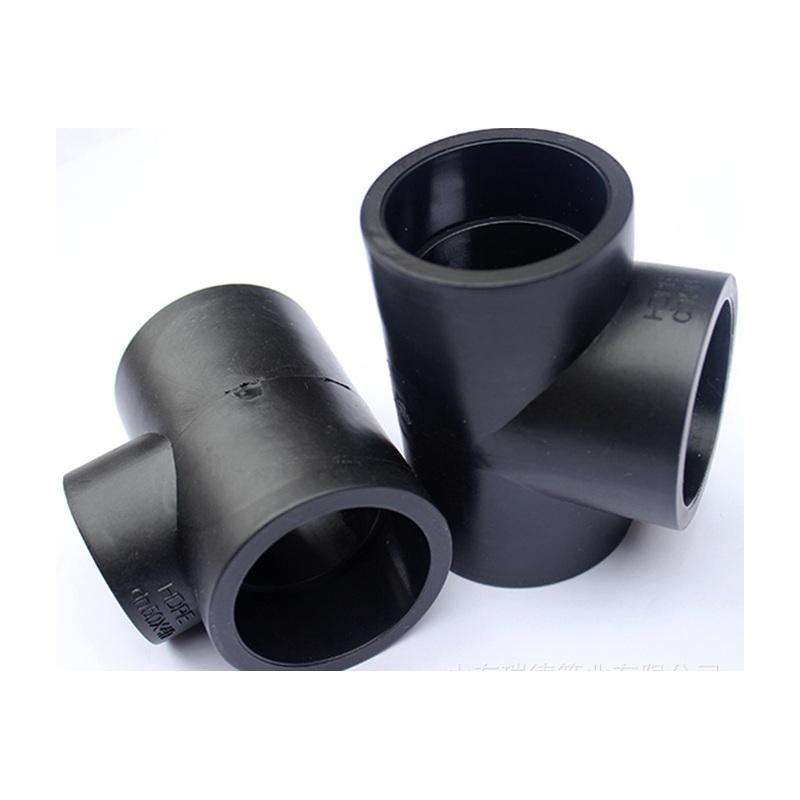

HDPE Socket Fusion Reducer Tee for Water

HDPE socket fusion reducer tee for three-way connections with reduced branch.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

HDPE socket fusion reducer tee for three-way connections with reduced branch. This HDPE socket fusion reducer tee is injection molded from PE100 resin in 8 combinations from 25x20 to 110x75 mm, rated PN10 and PN16 under ISO 4427 and EN 12201. One HDPE socket fusion reducer tee replaces a tee-plus-reducer assembly, cutting joints and leak risk.

Quick Information

Type: Reducer Tee
Material: HDPE PE100
Size: 25 - 110 mm
Pressure: PN16 / PN10
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION (dn-dn1)	L1	L2	L	H	SDR17	SDR13.6	SDR11
T75X32	65	45	230	93		√	√
T75X40	65	48	230	96		√	√
T75X50	64	59	228	107.5		√	√
T75X63	63	60	228	108.5		√	√
T90X40	65	63	222	105.5		√	√
T90X50	63	63	222	117		√	√
T90X63	63	62	222	116		√	√
T90X75	65	64	235	118		√	√
T110X32	75	45	220	110		√	√
T110X40	73	64	210	130		√	√
T110X50	72	63	220	128		√	√
T110X50s	64	60	205	121		√	√
T110X63	73	69	230	132		√	√
T110X63s	64	60	205	122		√	√
T110X75	78	70	260	137		√	√
T110X75s	65	61	230	122		√	√
T110X90	73	68	255	131		√	√
T110X90s	63	62	230	124		√	√
T125X50	68	58	226	135		√	√
T125X63	68	61	227	129.5		√	√
T125X75	74	64	242	137.5		√	√
T125X90	69	63	265	133.5		√	√
T125X110	68	63	265	132.5		√	√
T140X63	73	71	275	153		√	√
T140X75	79	68	330	151		√	√
T140X90	79	73	330	155		√	√
T140X110	78	76	330	157		√	√
T140X125	77	85	300	154		√	√
T160X50	78	65	230	154		√	√
T160X50s	66	61	210	146		√	√
T160X63	79	65	240	154		√	√
T160X63s	66	61	210	148		√	√
T160X75	79	67	225	156		√	√
T160X75s	68	63	240	148		√	√
T160X90	78	70	265	161		√	√
T160X90s	66	62	240	149		√	√
T160X110	79	73	290	165		√	√
T160X110s	67	65	255	150		√	√
T160X125	70	66	295	154		√	√
T160X140	70	66	295	153		√	√
T180X90	89	73	390	176		√	√
T180X110	89	77	390	180		√	√
T180X125	80	80	295	175		√	√
T180X140	80	80	310	175		√	√
T180X160	89	80	390	184		√	√
T200X50	71	61	220	167		√	√
T200X63	84	66	250	176		√	√
T200X63s	71	62	220	168		√	√
T200X75	83	68	260	177		√	√
T200X75s	71	63	245	169		√	√
T200X90	84	71	278	181		√	√
T200X90s	70	63	245	172		√	√
T200X110	83	74	294	183		√	√
T200X110s	71	65	264	173		√	√

Key Features

Integrated Reduced Branch: The HDPE socket fusion reducer tee forms the branch reduction in one molded body, removing an extra reducer and two fusion joints.
8 Branch Combinations: This socket fusion reducer tee covers 25x20 up to 110x75 mm to match common main-to-service size steps.
Reinforced Crotch Zone: The HDPE socket fusion reducer tee thickens the branch junction to handle hoop stress and water hammer at the tee.
PE100 Raw Material: Each socket fusion reducer tee is molded from virgin PE100 resin for full pressure rating on run and branch sockets.
Leak-Free Homogeneous Joints: The HDPE socket fusion reducer tee welds to the pipe in one homogeneous body with no gaskets or clamps.
Corrosion and Chemical Resistance: An HDPE reducer tee never rusts and tolerates aggressive soils for 50-year buried service.

Production

Raw Material

Every HDPE socket fusion reducer tee is molded from certified virgin PE100 resin with carbon black UV stabilizer, batch-tested for melt flow rate and density.

Molding Process

Each socket fusion reducer tee is injection molded with a stepped branch core that forms the reduced socket in the same cycle, holding concentricity within 0.1 mm.

Quality Control

Batches of HDPE socket fusion reducer tees are sampled for hydrostatic pressure tests at 20 and 80 degrees C, crotch wall-thickness mapping and socket depth gauging per ISO 4427.

Applications

Municipal water networks use the HDPE socket fusion reducer tee to tap smaller service lines from distribution mains.
Building water systems install this socket fusion reducer tee where fixture branches step down from the riser.
Agricultural irrigation relies on the HDPE socket fusion reducer tee to branch drip laterals off sub-mains in one fitting.
Industrial plants choose the socket fusion reducer tee for compact reduced-branch connections on process water lines.
