HDPE Socket Fusion Stub End for Water

HDPE socket fusion stub end for flanged connections.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

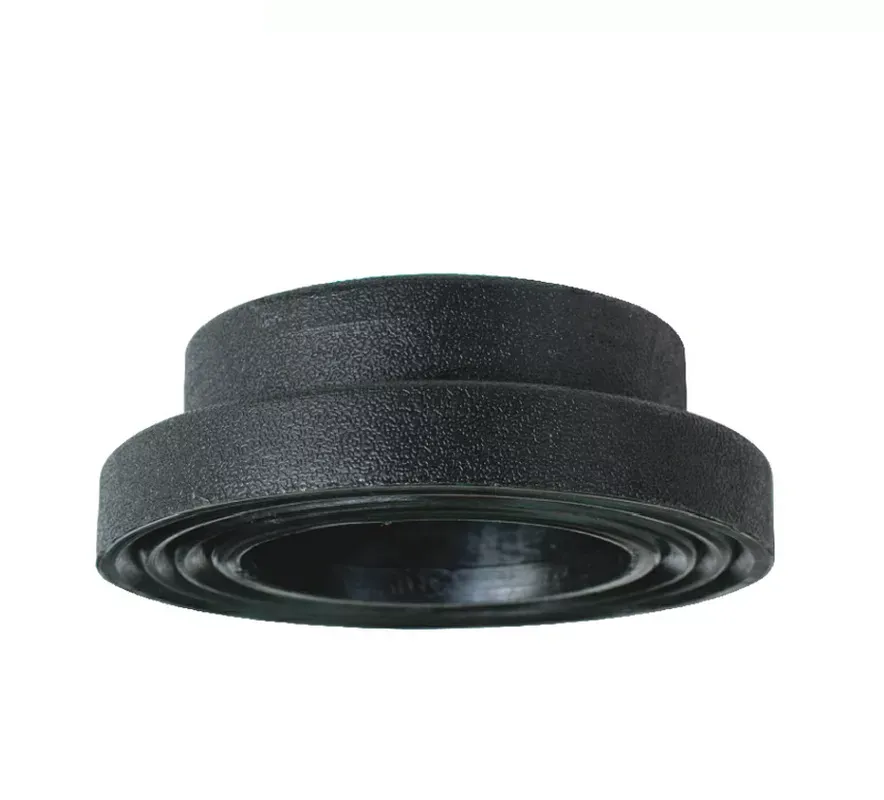

HDPE socket fusion stub end for flanged connections. This HDPE socket fusion stub end is injection molded from PE100 resin in sizes 20 to 110 mm, rated PN10 and PN16 under ISO 4427 and EN 12201. Paired with a loose backing flange, the HDPE socket fusion stub end creates a demountable joint to valves, pumps and metal piping.

Quick Information

Type: Stub End
Material: HDPE PE100
Size: 20 - 110 mm
Pressure: PN16 / PN10
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION (dn)	L	H	D1	D	SDR17	SDR13.6	SDR11
FL50	88	76	56	80			√
FL63	90	77	75	102	√		√
FL75	98	84	89	120	√		√
FL90	110	93	104	135	√		√
FL110	120	102	124	155	√		√
FL125	127	107	132	158	√		√
FL140	127	105	154	188	√		√
FL160	135	109	174	212	√		√
FL180	135	105	188	212	√		√
FL200	155	122	235	268	√		√
FL225	145	115	232	268	√		√
FL250	160	128	285	320	√		√
FL280	160	125	290	320	√		√
FL315	175	140	335	370	√		√
FL355	175	140	373	430	√		√
FL400	180	145	427	482	√		√
FL450	208	165	475	585	√		√
FL500	215	168	530	585	√		√
FL560	220	174	582	625	√		√
FL630	230	178	642	685	√		√
FL710	235	178	737	800	√		√
FL800	240	183	840	905	√		√
FL900	245	187	930	1005	√		√
FL1000	250	192	1030	1110	√		√
FL1200	300	230	1230	1300	√

Key Features

Flanged Demountable Joint: The HDPE socket fusion stub end works with a loose backing flange, giving a bolted joint that can be opened for maintenance.
Precision Flare Face: The stub flange face of each HDPE socket fusion stub end is molded flat and true for uniform gasket compression.
PE100 Raw Material: Every socket fusion stub end is molded from virgin PE100 resin for high hydrostatic strength and impact resistance.
Leak-Free Socket Weld: The HDPE socket fusion stub end welds to the pipe in one homogeneous body, leaving the flange as the only serviceable joint.
Corrosion and Chemical Resistance: An HDPE stub end never rusts and isolates metal flanges from corrosive media and soil.
Full Size Coverage: The socket fusion stub end range runs 20 to 110 mm, matching PN10 and PN16 backing flanges to standard bolt circles.

Production

Raw Material

Every HDPE socket fusion stub end is molded from certified virgin PE100 resin with carbon black UV stabilizer, batch-tested for melt flow rate and density.

Molding Process

Each socket fusion stub end is injection molded with a face-forming core that produces the flare and socket in one cycle, holding face flatness within tight tolerance.

Quality Control

Batches of HDPE socket fusion stub ends are sampled for hydrostatic pressure tests at 20 and 80 degrees C, flare face flatness checks and socket depth gauging per ISO 4427 and EN 12201.

Applications

Municipal water networks use the HDPE socket fusion stub end to connect PE lines to gate valves, meters and hydrants.
Building water systems install this socket fusion stub end at pump suction and discharge headers.
Agricultural irrigation relies on the HDPE socket fusion stub end for demountable joints at filters and fertilizer injectors.
Industrial plants choose the socket fusion stub end where HDPE piping meets steel equipment nozzles.
