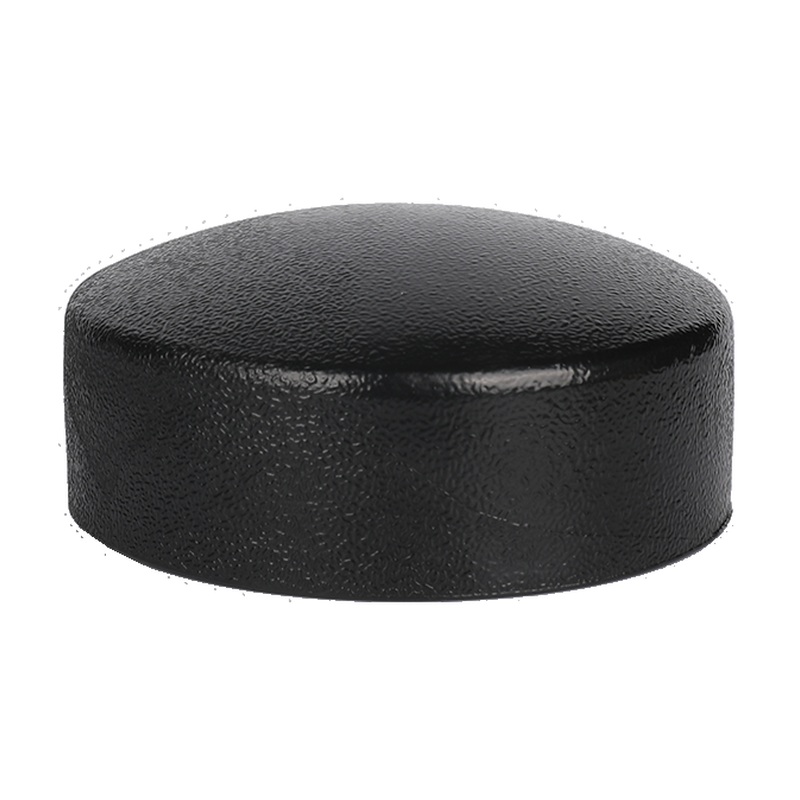

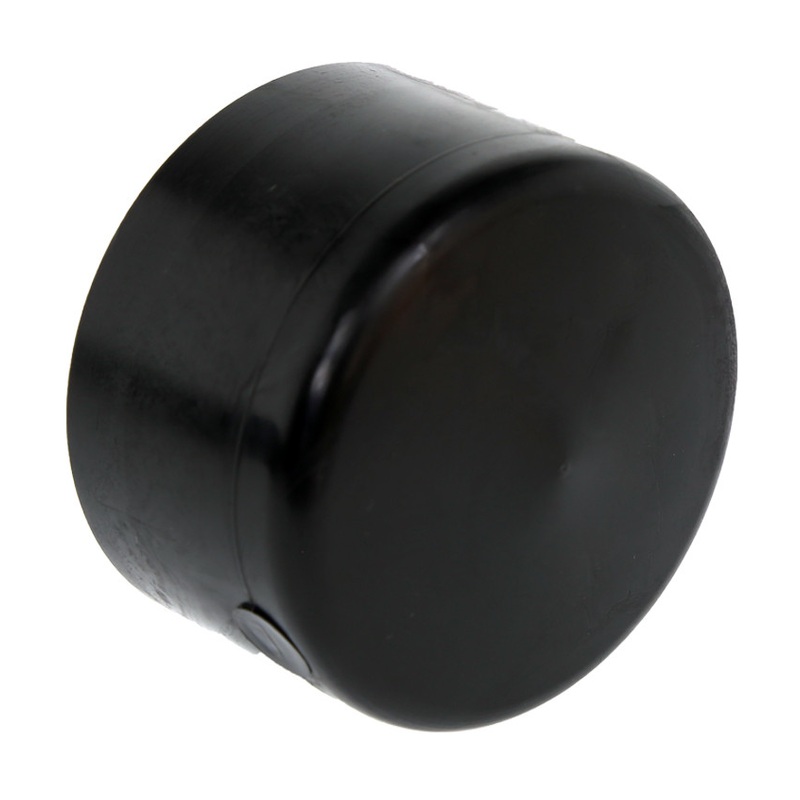

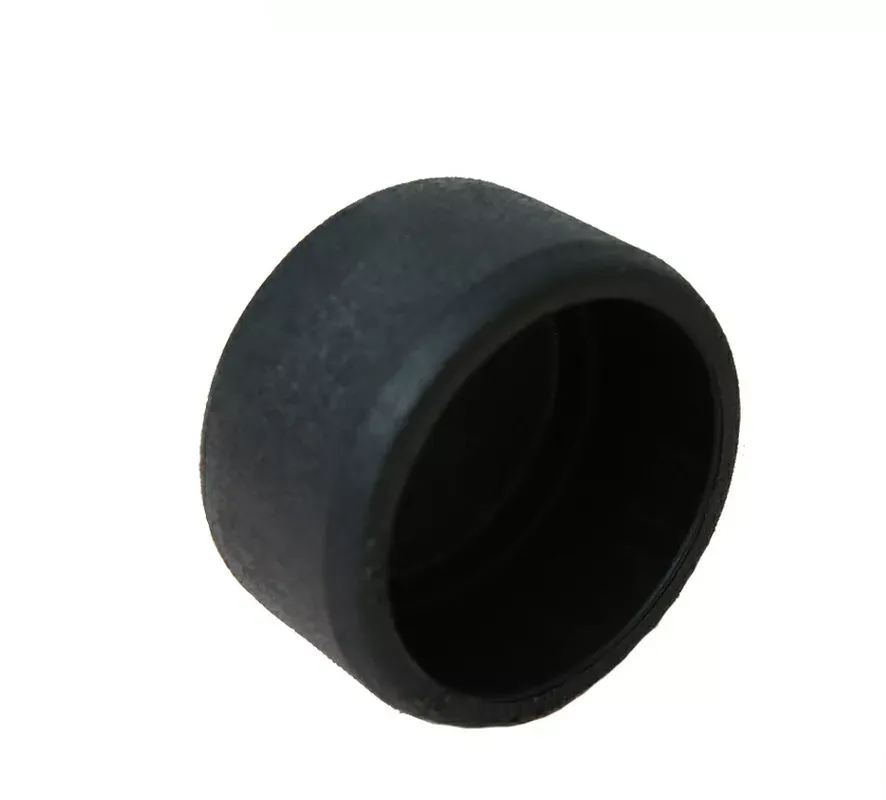

HDPE Socket Fusion End Cap for Water

Socket fusion end cap designed for sealing HDPE pipeline terminals in water conveyance systems, ensuring reliable sealing and long-term durability.

Extra Valuable Service
✧High Quality: ISO certificated          ✧Global Transportation Service
✧Free samples& Free Design           ✧Full Satisfaction Guaranted: 5 Yeas

  sales@sdworldlink.com   +8617263526029(WhatsApp)
分类：
✦Specifications of High Density Polyethylene (HDPE) Pipes and Fittings for water ISO4427 Standard
ISO 4427-2: Plastics piping systems. Polyethylene pipes & fittings for water supply – Part 2: Pipes EN 12201-2: Plastics piping systems for water supply – Polyethylene – Part 2: Pipes EN 1555-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes ISO 4437-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes
ISO Size and Dimension Data
Henan Bingo Pipeline ISO HDPE Series
Pressure Ratings are calculated using a 1,25 design coefficient (C) for MRS at 20°C as listed in PPI TR-4 for PE 100 materials.  Pressure ratings are based on water applications. Temperature, Chemical, and Environmental use considerations may require use of additional design coefficients.
ISO 4427 Pipe Series S 3.2 S 4 S 5 S 6,3 S 8 S 10 S 12,5 S 16
ASTM F714 DR DR 7.4 DR 9 DR 11 DR 13.6 DR 17 DR 21 DR 26 DR 33
Nominal Pressure PE 100 PN = 25 bar PN = 20 bar PN = 16 bar PN = 12,5 bar PN = 10 bar PN = 8 bar PN = 6 bar PN = 5 bar
Nominal Size DN (mm) Equiv Size (in) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm)
20 0.79 3.0 13.6 2.3 15.12 2.0 15.76 1.5 16.88 1.2 17.51 1.0 17.98 0.6 18.72 0.61 18.72
25 0.98 3.5 17.60 3.0 18.64 2.3 20.12 2.0 20.76 1.5 21.88 1.2 22.48 0.8 23.39 0.76 23.39
32 1.26 4.4 22.70 3.6 24.37 3.0 25.64 2.4 26.91 2.0 27.76 1.5 28.77 1.0 29.94 0.97 29.94
40 1.57 5.5 28.30 4.5 30.46 3.7 32.16 3.0 33.64 2.4 34.91 2.0 35.76 1.2 37.43 1.21 37.43
50 1.97 6.9 35.40 5.6 38.13 4.6 40.25 3.7 42.16 3.0 43.64 2.4 44.91 2.0 45.76 1.52 46.79
63 2.48 8.6 44.80 7.1 47.95 5.8 50.70 4.7 53.04 3.8 54.94 3.0 56.64 2.5 57.70 1.91 58.95
75 2.95 10.3 53.20 8.4 57.19 6.8 60.58 5.6 63.13 4.5 65.46 3.6 67.37 2.9 68.85 2.27 70.18
90 3.54 12.3 63.90 10.1 68.59 8.2 72.62 6.7 75.80 5.4 78.55 4.3 80.88 3.5 82.58 2.73 84.22
110 4.33 15.1 78.00 12.3 83.92 10.0 88.80 8.1 92.83 6.6 96.01 5.3 98.76 4.2 101.10 3.33 102.93
125 4.92 17.1 88.70 14.0 95.32 11.4 100.83 9.2 105.50 7.4 109.31 6.0 112.28 4.8 114.82 3.79 116.97
140 5.51 19.2 99.30 15.7 106.72 12.7 113.08 10.3 118.16 8.3 122.40 6.7 125.80 5.4 128.55 4.24 131.01
160 6.30 21.9 113.60 17.9 122.05 14.6 129.05 11.8 134.98 9.5 139.86 7.7 143.68 6.2 146.86 4.85 149.72
180 7.09 24.6 127.80 20.1 137.39 16.4 145.23 13.3 151.80 10.7 157.32 8.6 161.77 6.9 165.37 5.45 168.44
200 7.87 27.4 141.90 22.4 152.51 18.2 161.42 14.7 168.84 11.9 174.77 9.6 179.65 7.7 183.68 6.06 187.15
225 8.86 30.8 159.70 25.2 171.58 20.5 181.54 16.6 189.81 13.4 196.59 10.8 202.10 8.6 206.77 6.82 210.55
250 9.84 34.2 177.50 27.9 190.85 22.7 201.88 18.4 210.99 14.8 218.62 11.9 224.77 9.6 229.65 7.58 233.94
280 11.02 38.3 198.80 31.3 213.64 25.4 226.15 20.6 236.33 16.6 244.81 13.4 251.59 10.7 257.32 8.48 262.01
315 12.40 43.1 223.60 35.2 240.38 28.6 254.37 23.2 265.82 18.7 275.36 15.0 283.20 12.1 289.35 9.70 294.44
355 13.98 48.5 252.20 39.7 270.84 32.2 286.74 26.1 299.67 21.1 310.27 16.9 319.17 13.6 326.17 10.90 331.89
400 15.75 54.7 284.00 44.7 305.24 36.3 323.04 29.4 337.67 23.7 349.76 19.1 359.51 15.3 367.56 12.30 373.92
450 17.72 61.5 319.60 50.3 343.36 40.9 363.29 33.1 379.83 26.7 393.40 21.5 404.42 17.2 413.54 13.80 420.74
500 19.69 67.6 356.70 55.8 381.70 45.4 403.75 36.8 421.98 29.7 437.04 23.9 449.33 19.1 459.51 15.30 467.56
560 22.05 75.7 399.50 62.5 427.50 50.8 452.30 41.2 472.66 33.2 489.62 26.7 503.40 21.4 514.63 17.20 523.54
630 24.80 85.1 449.60 70.3 480.96 57.2 508.74 46.3 531.84 37.4 550.71 30.0 566.40 24.1 578.91 19.30 589.08
710 27.95 95.9 506.70 79.3 541.88 64.5 573.26 52.2 599.34 42.1 620.75 33.9 638.13 27.2 652.34 21.80 663.78
800 31.50 108.1 583.8 89.3 610.68 72.6 646.09 58.8 675.34 47.4 699.51 38.1 719.23 30.6 735.13 24.50 748.06
900 35.43 126.62 646.76 100.0 700.00 81.7 726.80 66.2 759.66 53.3 787.00 42.9 809.05 34.4 827.07 27.60 841.49
1000 39.37 135.14 729.72 111.12 777.76 90.2 808.78 72.5 846.30 59.3 874.28 47.7 898.88 38.2 919.02 30.60 935.13
1200 47.24 162.16 875.68 133.34 933.32 109.1 981.82 88.2 1013.02 67.9 1056.05 57.2 1078.74 45.9 1102.69 36.70 1122.20
1400 55.12 189.19 1021.62 155.56 1088.88 127.3 1145.46 102.9 1181.85 82.4 1225.31 66.7 1258.60 53.5 1286.58 42.90 1309.05
This product flyer is intended for reference purposes.  It should not be used in place of the advice from a licensed Professional Engineer.  Nominal pressure (PN) is based on C = 1,25 and an operating temperature of 20°C.  Weight is calculated using DN and Minimum wall plus 6% for use in estimating fluid flow. Actual ID will vary. When designing components to fit the pipe ID, refer to pipe dimensions and tolerances in the applicable pipe manufacturing specification.  To obtain pressure in psi, multiply bar by 14.5 (1 bar ≈ 14.5 psi).  Additional information is available at www.bingopipes.com.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@geosyntheticsupplier.com or Mobile:(WhatsApp): +86 18063297452.

  • Municipal water supply network retrofits
  • Industrial cooling water circulation systems
  • Agricultural irrigation distribution networks
  • Building water supply and drainage systems
  • Directional changes in water treatment plants
  • Branch modifications in underground water networks
  • Corner layouts for fire sprinkler systems
  • Low-pressure piping in desalination projects
  • 45° angle design optimizes hydrodynamics
  • Socket fusion ensures leak-free permanent joints
  • Resistant to chemical corrosion and UV degradation
  • Smooth interior minimizes flow resistance
  • Diameter Range: DN20 – DN1200
  • Pressure Rating: PN10 – PN16 (10-16 bar)
  • Applicable Standards: ISO 4427, EN 12201
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days
 SPECIFICATION (dn) L (mm) H (mm) SDR17 SDR13.6 SDR11
D160 128 102 √ √
D180 135 105 √ √
D200 142 112 √ √
D225 130 115 √ √
D250 140 128 √ √
D280 140 120 √ √
D315 160 150 √ √
D355 140 115 √ √
D400 130 100 √ √
D450 140 115 √ √
D500 140 115 √ √
D560 150 115 √ √
D630 150 115 √ √
D710 160 125 √
D800 160 125 √
D900 160 125 √
D1000 160 125 √
D1200 200 155 √

Key Features

  • Socket fusion design for leak-free sealing
  • HDPE material resists chemical corrosion and UV radiation
  • Smooth inner wall minimizes head loss
  • Complies with ISO 4427 potable water safety standards

Typical Applications

  • Terminal sealing in municipal water supply networks
  • Pipe end closure in industrial cooling water systems
  • Irrigation pipeline terminal protection
  • Building water supply and drainage systems

Manufacturing Process

Injection molding process

  • Melt temperature control (190-220°C)
  • Optimized mold cooling rate
  • Holding pressure accuracy ±0.5MPa
  • Molecular orientation control for structural homogeneity

Raw Material Characteristics

  • Density: 0.945-0.955 g/cm³
  • Melt Flow Rate (MFR): 0.2-0.4 g/10min
  • Tensile strength ≥22 MPa
  • Elastic modulus ≥800 MPa
  • Isolation of maintenance sections in potable water networks
  • Terminal points in wastewater treatment pipeline systems
  • Backup line sealing in desalination projects
  • Pressure test points at firewater pipeline terminals
