HDPE Socket Fusion Reducer for Water

HDPE socket fusion reducing coupler for size transition.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

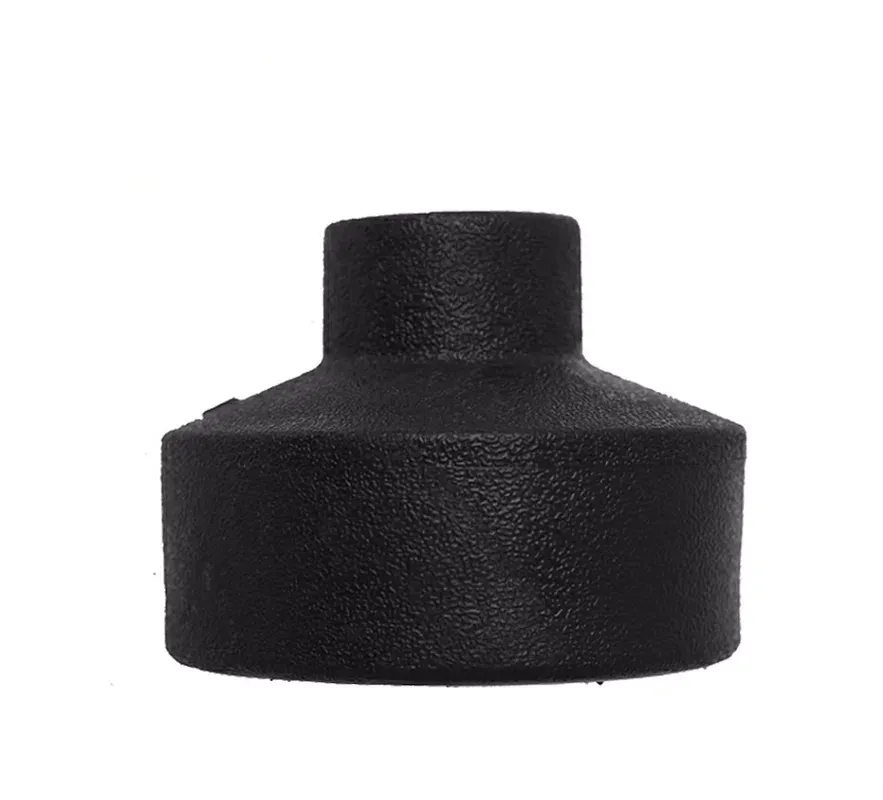

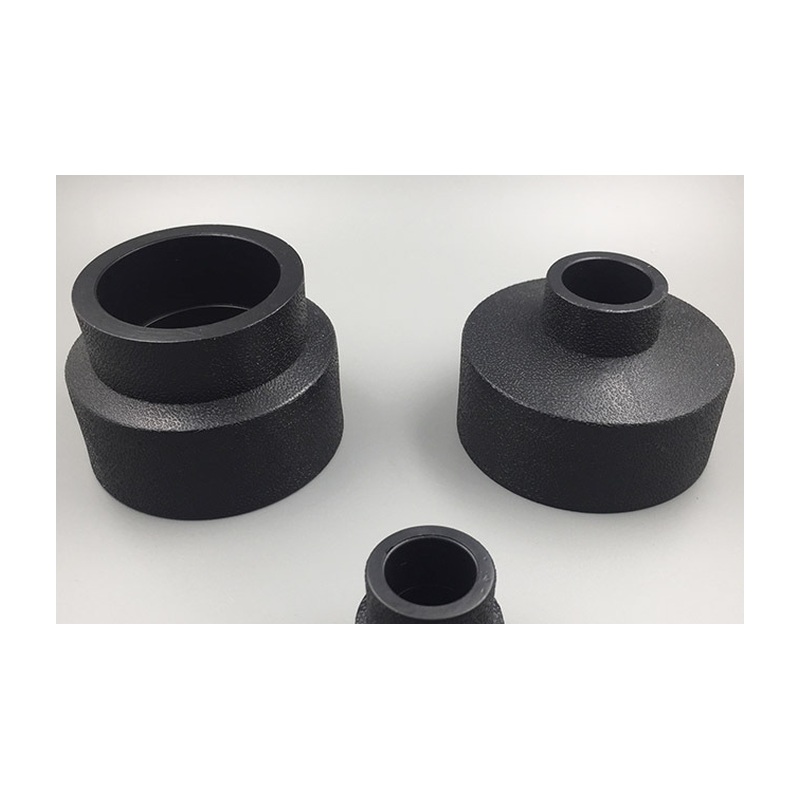

HDPE socket fusion reducing coupler for size transition. This HDPE socket fusion reducer is injection molded from PE100 resin in 20 size combinations from 25x20 to 110x90 mm, rated PN10 to PN25 under ISO 4427 and EN 12201. A smooth internal taper lets the HDPE socket fusion reducer change pipe diameter without turbulence or extra fittings.

Quick Information

Type: Reducing Coupler
Material: HDPE PE100
Size: 25 - 110 mm
Pressure: PN25 / PN20 / PN16 / PN10
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION	D1	D2	L1	L2	L
S32-25	35	43	45	47	100
S40-32	43	51	36	88	100
S50-40	52	63	43	57	105
S63-40	52	76	40	60	110
S63-50	62	79	46	60	115
S75-50	62	92	50	60	125
S75-63	79	92	52	60	125
S90-63	79	110	55	65	135
S90-75	92	110	55	65	135
S110-50	62	135	50	80	150
S110-63	79	135	50	75	145
S110-75	92	135	50	75	145
S110-90	110	135	57	75	145
S125-110	128	150	70	82	170
S140-110	130	163	65	90	175
S160-90	113	192	52	90	175
S160-110	135	192	60	90	175
S200-110	135	237	55	105	200
S200-160	194	237	70	105	200
S250-110	135	296	60	120	225
S250-160	194	296	80	120	225
S250-200	239	296	85	120	225
S315-160	194	373	90	130	265
S315-200	235	373	85	135	280
S315-250	299	373	100	130	265
S355-200	240	417	60	160	285
S355-250	295	417	100	160	300
S355-315	370	415	110	160	285
S400-315	370	472	110	160	315
S400-355	420	472	130	160	315
S450-400	471	523	120	173	335
S500-400	475	575	125	165	320

Key Features

Smooth Bore Transition: The HDPE socket fusion reducer uses a gradual internal taper that keeps flow laminar and pressure loss low across the size change.
20 Size Combinations: One socket fusion reducer series covers 25x20 up to 110x90 mm, replacing multi-fitting step-down assemblies.
PE100 Raw Material: Each HDPE socket fusion reducer is molded from virgin PE100 resin for full pressure rating on both the large and small socket.
Leak-Free Fusion Both Ends: The socket fusion reducer welds both sockets into homogeneous joints stronger than the pipe, with no gaskets or sealants.
Corrosion and Chemical Resistance: An HDPE reducer never rusts and withstands aggressive soils, making it maintenance-free for buried service.
Compact Design: The HDPE socket fusion reducer keeps overall length short so transitions fit inside trenches, ducts and meter boxes.

Production

Raw Material

Every HDPE socket fusion reducer is molded from certified virgin PE100 resin with carbon black UV stabilizer, batch-tested for melt flow rate and density.

Molding Process

Each socket fusion reducer is injection molded with stepped core pins that form both socket diameters in one cycle, holding concentricity within 0.1 mm.

Quality Control

Batches of HDPE socket fusion reducers are sampled for hydrostatic pressure tests at 20 and 80 degrees C, concentricity checks and socket depth gauging per ISO 4427 and EN 12201.

Applications

Municipal water networks use the HDPE socket fusion reducer to step down from distribution mains to service lines.
Building water systems install this socket fusion reducer at meter connections and pump outlets of different diameters.
Agricultural irrigation relies on the HDPE socket fusion reducer to taper main lines down to lateral drip zones.
Industrial plants choose the socket fusion reducer for compact size transitions on process water piping.
