HDPE Threaded Adapter Fitting

HDPE threaded adapter fitting OD20-110 mm with 1/2 to 4 inch BSP male or female thread, PN16, socket fusion to PE100 pipe to ISO 4427 and EN 12201.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

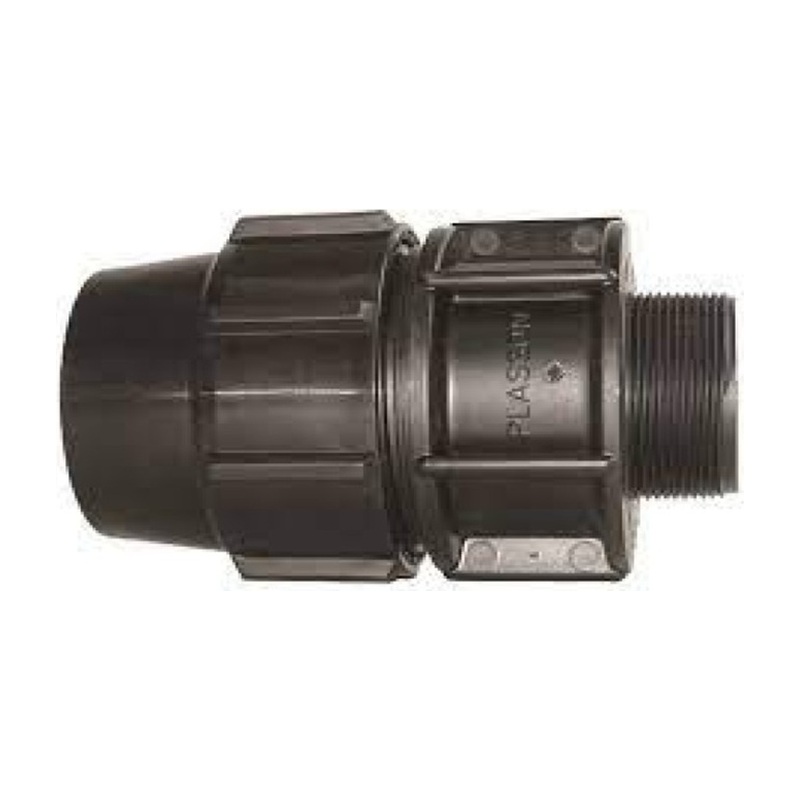

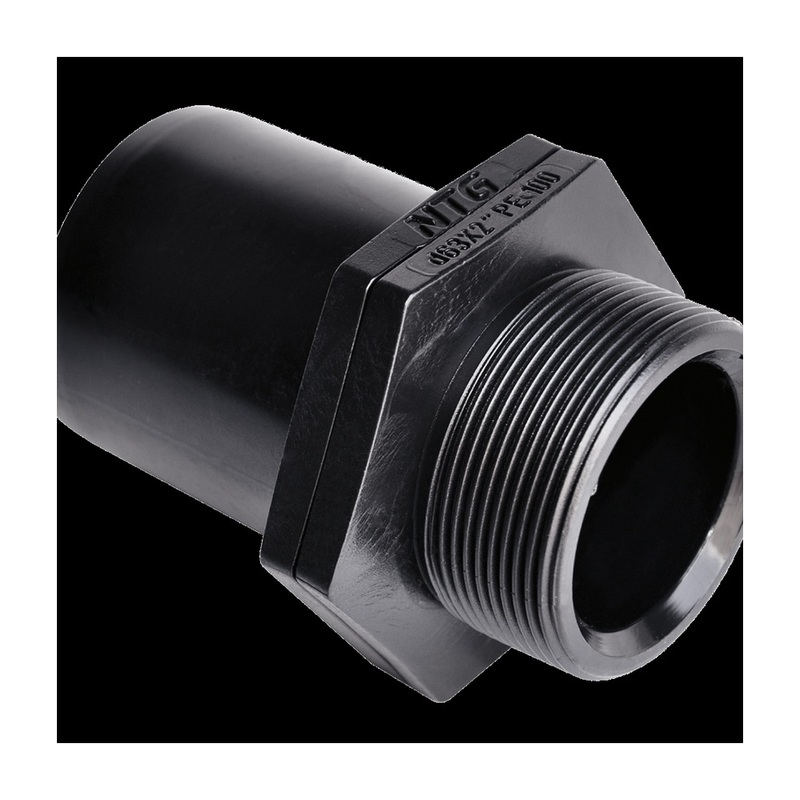

The HDPE Threaded Adapter Fitting joins an HDPE socket fusion body to a screw thread, so a polyethylene pipeline can be screwed directly onto pumps, valves, filters and equipment that have a threaded port. Supplying the threaded end as part of the fitting - instead of adding a separate adapter on site - keeps the joint short, keeps the number of possible leak points low, and lets the HDPE Threaded Adapter Fitting make a clean transition from a welded PE line to metal equipment.

Every HDPE Threaded Adapter Fitting is produced in PE100 grade material and covers pipe sizes from OD20 mm up to OD110 mm, with thread sizes from 1/2 inch to 4 inch in both male and female versions. The range includes threaded couplings, threaded elbows and threaded tees, all rated PN16 or PN10 and manufactured in line with ISO 4427 / EN 12201 requirements for PE piping systems.

Quick Information

Product Name: HDPE Threaded Adapter Fitting
Material: PE100 HDPE body with threaded end
Pipe Size: OD20 mm - OD110 mm
Thread Size: 1/2 inch - 4 inch (BSP)
Thread Types: Male and female
Pressure Rating: PN16 / PN10
Standard: ISO 4427 / EN 12201
Connection: Socket fusion to HDPE pipe, thread to equipment

Specification Table

Threaded coupling series (male and female), pipe OD20-110 mm. Dimensions in millimetre.

Size	Male D (mm)	Male L (mm)	Female D (mm)	Female L (mm)
20 x 1/2"	27	58	27	41
20 x 3/4"	27	55	27	43
25 x 1/2"	33	58	33	44
25 x 3/4"	33	60	33	46
32 x 1/2"	41	52	41	39
32 x 3/4"	41	55	41	43
32 x 1"	41	65	41	50
40 x 1-1/4"	51	70	50	52
50 x 1-1/2"	60	72	60	54
63 x 2"	76	83	77	64
75 x 2-1/2"	90	94	90	70
90 x 3"	107	105	108	82
110 x 4"	131	115	131	85

Note: The HDPE Threaded Adapter Fitting range also includes threaded elbows and threaded tees in the same sizes. Other thread standards, thread combinations and non-standard dimensions can be produced to your drawing on request.

Key Features

PE100 body: Every HDPE Threaded Adapter Fitting is made from PE100 grade HDPE, so the body is corrosion resistant and matches the pipe it is welded to.
Male and female versions: Both male and female threads are available across the whole range, so the HDPE Threaded Adapter Fitting can suit a threaded socket or a threaded spigot on the equipment side.
Wide thread range: Thread sizes from 1/2 inch up to 4 inch cover the fittings and small-bore equipment most often found on HDPE water and industrial lines.
Short, leak-resistant joint: Because the thread is part of the HDPE Threaded Adapter Fitting, the transition from PE pipe to threaded equipment needs no extra adapter, keeping the assembly compact.
Full product family: Couplings, 90 degree elbows and tees are all offered threaded, so a complete threaded branch can be built from one product family.
Standards compliance: Produced in line with ISO 4427 and EN 12201 requirements for PE piping systems.

Production

Raw Material

Every HDPE Threaded Adapter Fitting starts from virgin PE100 grade HDPE compound. Using virgin PE100 stock - instead of regrind - keeps the mechanical strength and slow crack growth resistance of the HDPE Threaded Adapter Fitting consistent with the connected pipe.

Molding Process

The body is moulded and the thread end is finished to the required thread standard, so the HDPE Threaded Adapter Fitting keeps accurate thread dimensions together with the correct socket fusion geometry on the pipe side. Socket fusion is used to join the fitting to pipe of 20 mm through 110 mm.

Quality Control

Each fitting is checked for pipe socket diameter, thread size and overall length before dispatch. Dimensional performance follows ISO 4427 requirements, and inspection records are kept for traceability.

Applications

Pump and valve connections: The HDPE Threaded Adapter Fitting screws an HDPE line directly onto pumps, valves and filters with threaded ports.
Water supply networks: Service connections and small-bore branches on PE water mains use the threaded coupling, elbow and tee.
Irrigation systems: Threaded fittings connect HDPE irrigation pipe to sprinklers, drippers and control valves.
Industrial and chemical plants: The corrosion-resistant PE100 body handles process water and a wide range of chemicals where a metal fitting would corrode.
Equipment and instrumentation: Threaded tees allow gauges, sensors and sampling points to be added to a polyethylene line.
