Product Overview

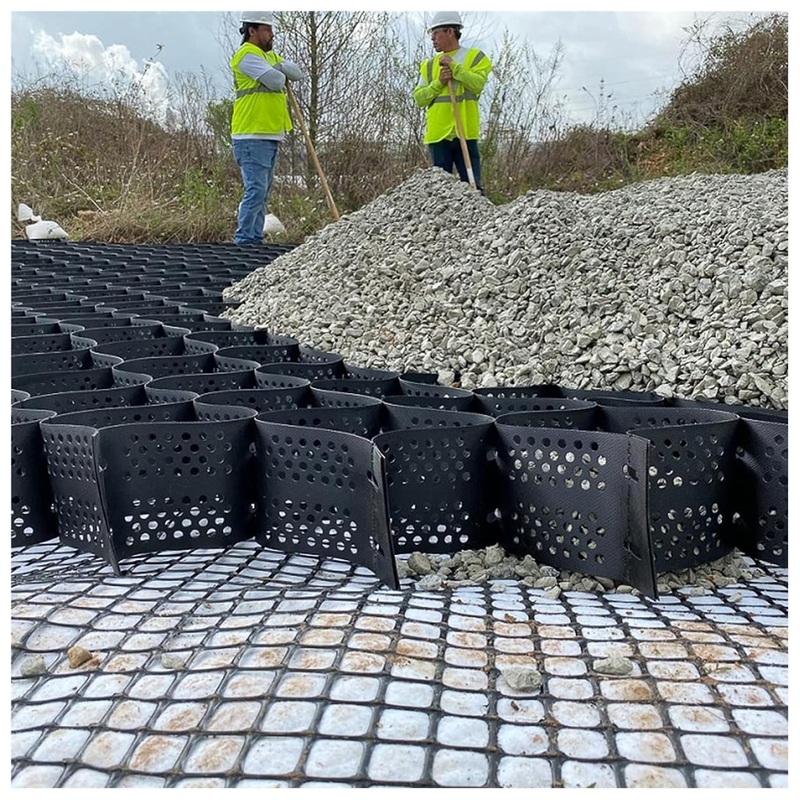

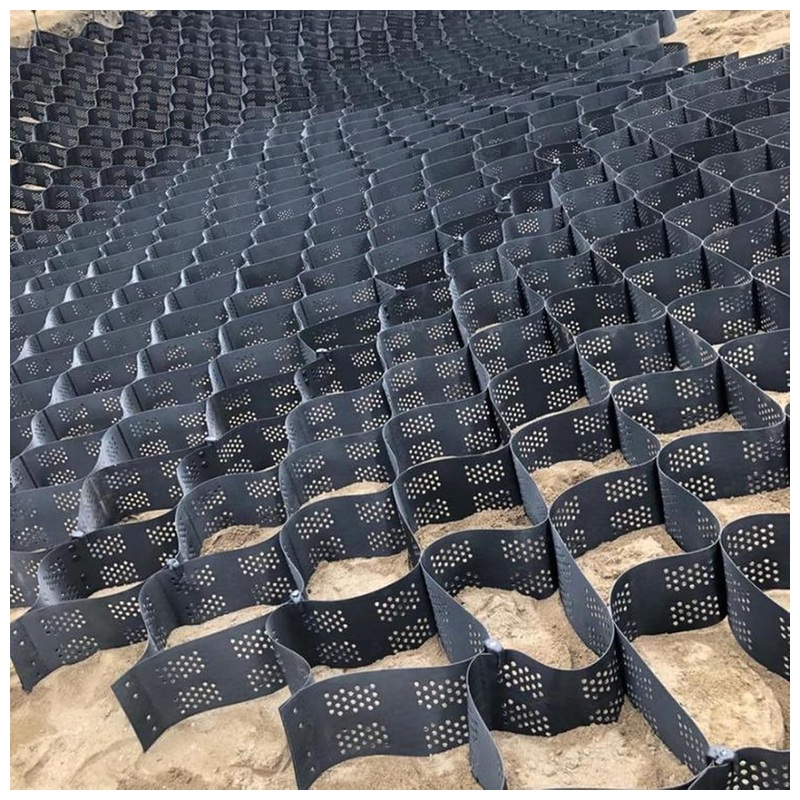

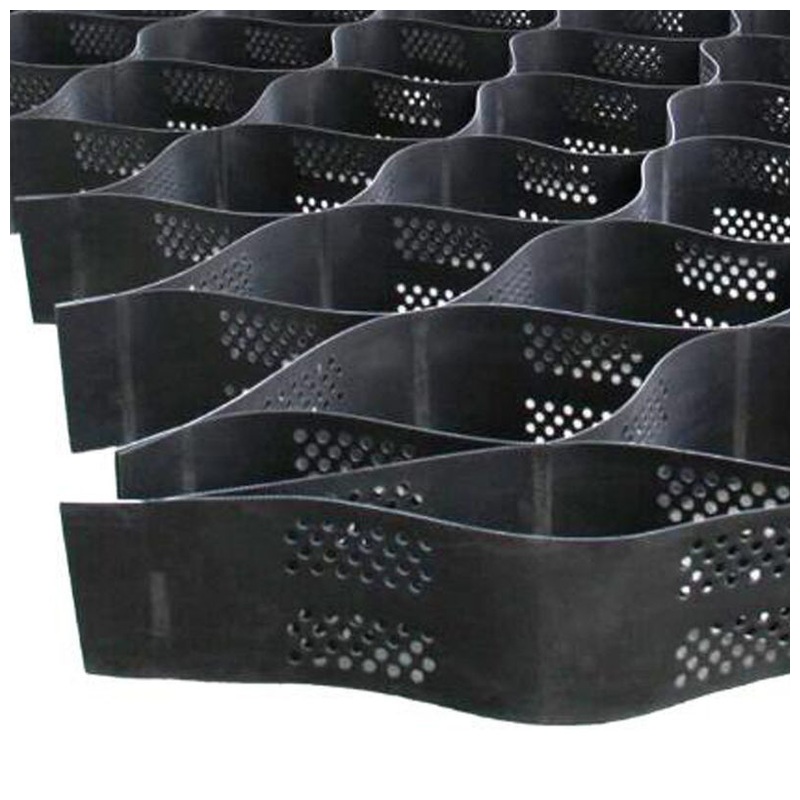

The HDPE geocell from Bingo Pipeline is a three-dimensional honeycomb confinement system made from high-density polyethylene sheet, ultrasonically welded into a flexible grid. When filled with soil, gravel or concrete, the HDPE geocell confines the infill laterally and turns a loose layer into a stiff, load-spreading mattress.
Cell heights run from 50 mm to 200 mm and welding spacing from 300 mm to 900 mm, giving forty standard combinations for slope protection, retaining structures, channel linings and load support. Sheet thickness is 1.0-1.1 mm for smooth panels and 1.4-1.5 mm for textured panels, and the HDPE geocell can be supplied perforated for drainage.
Quick Information
- Material: HDPE / PE sheet, ultrasonically welded
- Cell height: 50 / 75 / 100 / 150 / 200 mm
- Welding spacing: 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 mm
- Sheet thickness: 1.0-1.1 mm smooth, 1.4-1.5 mm textured
- Surface: smooth or perforated
- Colour: black standard
- Standard: GB or non-standard grades
Specification Table
| Cell Height (mm) | Welding Spacing (mm) | Sheet Thickness | Standard |
|---|---|---|---|
| 50 | 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 | 1.0-1.1 mm smooth 1.4-1.5 mm textured |
GB / Non-standard |
| 75 | 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 | 1.0-1.1 mm smooth 1.4-1.5 mm textured |
GB / Non-standard |
| 100 | 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 | 1.0-1.1 mm smooth 1.4-1.5 mm textured |
GB / Non-standard |
| 150 | 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 | 1.0-1.1 mm smooth 1.4-1.5 mm textured |
GB / Non-standard |
| 200 | 300 / 330 / 400 / 445 / 500 / 600 / 800 / 900 | 1.0-1.1 mm smooth 1.4-1.5 mm textured |
GB / Non-standard |
| Material | HDPE / PE sheet, ultrasonically welded | ||
| Surface | Smooth or perforated (perforation available) | ||
| Colour | Black standard, other colours on request | ||
| Welded height option | PP high-strength welded geocell 90-800 / 150-800 on request | ||
