Project Overview
A large-scale agricultural operation in Southeast Asia faced significant challenges with water efficiency across their 500-hectare farmland. Traditional open-channel irrigation methods resulted in substantial water loss through evaporation and leakage, while inconsistent water distribution affected crop yields across different sections of the farm.
WorldLink was engaged to design and supply a complete HDPE piping solution for a modern pressurized irrigation system that would maximize water efficiency while reducing maintenance requirements.
Key Result: 30% reduction in water usage, 25% increase in crop yield, and annual maintenance costs reduced by 60% compared to the previous open-channel system.
The Challenge
- Water scarcity: Seasonal drought conditions required efficient water management
- Uneven distribution: Fields at higher elevations received less water than lower areas
- High evaporation loss: Open channels lost up to 30% of water to evaporation in tropical heat
- Maintenance intensive: Channels required frequent clearing of weeds and debris
Our Solution

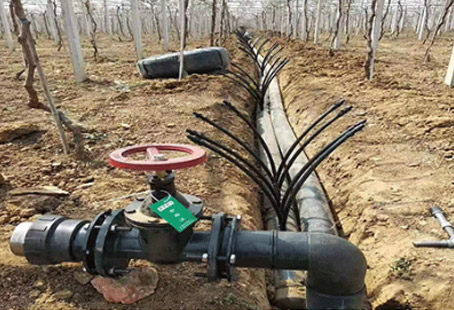

WorldLink supplied a comprehensive HDPE piping system including:
- DN 200mm HDPE mainline pipes — 12km of PE100 grade pipes for primary water distribution
- DN 63–110mm branch lines — 25km of branched piping to individual field sections
- Butt fusion fittings — Elbows, tees, and reducers for reliable joint connections
- Valves and control systems — Sectional control valves for precise water management
Implementation
The project was executed in three phases over 6 months. WorldLink provided on-site technical supervision for the first phase to ensure proper installation techniques, including butt fusion welding training for the local installation team.
The closed-loop pressurized system eliminated evaporation losses entirely, while the smooth internal surface of HDPE pipes reduced friction loss and pumping energy requirements by approximately 20%.
Results & Impact
The new irrigation system delivered immediate and measurable improvements to the farm's operations:
- Water consumption reduced from 12,000 m³ to 8,400 m³ per month — a 30% saving
- Crop yield increased by 25% due to consistent and reliable water supply
- Energy costs for pumping reduced by 18% due to lower friction losses
- Maintenance intervals extended from monthly to bi-annual inspections
- The farm achieved a full return on investment within 18 months
